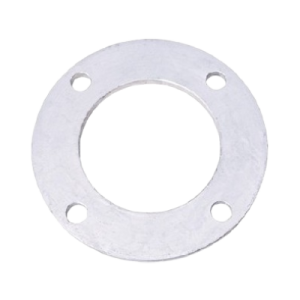

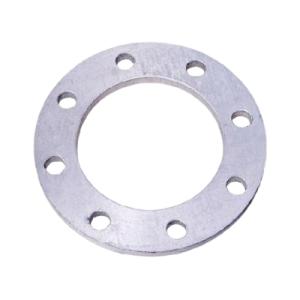

for bolt on PE stub flange
| Pipe OD | Part Number (Galvanised) | K | D | A | T | S | No. of Bolt Holes | Bolt Size | |
|---|---|---|---|---|---|---|---|---|---|
| 20 | BRGVD020 | 67 | 95 | 32 | 6 | 14 | 4 | M12 | |
| 25 | BRGVD025 | 73 | 100 | 37 | 6 | 14 | 4 | M12 | |
| 32 | BRGVD032 | 83 | 115 | 44 | 6 | 14 | 4 | M12 | |
| 40 | BRGVD040 | 87 | 120 | 52 | 6 | 14 | 4 | M12 | |
| 50 | BRGVD050 | 98 | 135 | 62 | 8 | 18 | 4 | M12 | |
| 63 | BRGVD063 | 114 | 150 | 78 | 8 | 18 | 4 | M16 | |
| 75 | BRGVD075 | 127 | 165 | 92 | 8 | 18 | 4 | M16 | |
| 90 | BRGVD090 | 146 | 185 | 108 | 10 | 18 | 4 | M16 | |
| 110 | BRGVD110 | 178 | 215 | 128 | 10 | 18 | 4 | M16 | |
| 125 | BRGVD125 | 210 | 255 | 140 | 13 | 18 | 8 | M16 | |
| 140 | BRGVD140 | 210 | 255 | 158 | 13 | 18 | 8 | M16 | |
| 160 | BRGVD160 | 235 | 280 | 178 | 13 | 18 | 8 | M16 | |
| 180 | BRGVD180 | 235 | 280 | 195 | 13 | 18 | 8 | M16 | |
| 200 | BRGVD200 | 292 | 335 | 235 | 13 | 18 | 8 | M16 | |
| 225 | BRGVD225 | 292 | 335 | 240 | 13 | 18 | 8 | M16 | |
| 250 | BRGVD250 | 356 | 405 | 290 | 16 | 22 | 8 | M20 | |
| 280 | BRGVD280 | 356 | 405 | 300 | 16 | 22 | 8 | M20 | |
| 315 | BRGVD315 | 406 | 455 | 345 | 19 | 22 | 12 | M20 | |
| 355 | BRGVD355 | 470 | 525 | 376 | 22 | 26 | 12 | M24 | |
| 400 | BRGVD400 | 521 | 580 | 430 | 22 | 26 | 12 | M24 | |
| 450 | BRGVD450 | 584 | 640 | 480 | 25 | 26 | 12 | M24 | |
| 500 | BRGVD500 | 641 | 705 | 533 | 29 | 26 | 16 | M24 | |
| 560 | BRGVD560 | 699 | 760 | 590 | 32 | 30 | 16 | M27 | |
| 630 | BRGVD630 | 756 | 825 | 660 | 32 | 30 | 16 | M27 | |
| 710 | BRGVD710 | 845 | 910 | 745 | 35 | 30 | 20 | M27 | |
| 800 | BRGVD800 | 984 | 1060 | 835 | 41 | 36 | 20 | M33 | |
| 900 | BRGVD900 | 1092 | 1175 | 950 | 48 | 36 | 24 | M33 | |
| *¹ 8″ PCD to suit 225mm pipe | |||||||||
| *² To suit 400mm pipe, special stub flange is required | |||||||||
