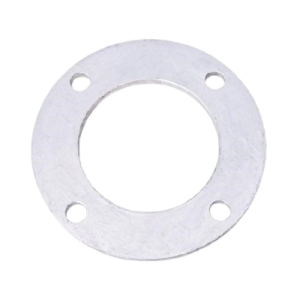

for bolt on PE stub flange
| Pipe OD | Part Number (SS316) | K | D | A | T | S | No. of Bolt Holes | Bolt Size | |
|---|---|---|---|---|---|---|---|---|---|
| 63 | BRSS634087 | 114 | 150 | 78 | 11 | 18 | 4 | M16 | |
| 75 | BRSS754087 | 127 | 165 | 92 | 11 | 18 | 4 | M16 | |
| 90 | BRSS904087 | 146 | 185 | 108 | 11 | 18 | 4 | M16 | |
| 110 | BRSS1104087 | 178 | 215 | 128 | 13 | 18 | 4 | M16 | |
| 125 | BRSS1254087 | 178 | 215 | 140 | 13 | 18 | 4 | M16 | |
| 160 | BRSS1604087 | 235 | 280 | 178 | 13 | 18 | 8 | M16 | |
| 180 | BRSS1804087 | 235 | 280 | 195 | 13 | 18 | 8 | M16 | |
| 200 | BRSS2004087 | 292 | 335 | 235 | 19 | 18 | 8 | M16 | |
| 225*¹ | BRSS22540878 | 292 | 335 | 240 | 19 | 18 | 8 | M16 | |
| 225 | BRSS2254087 | 324 | 370 | 240 | 19 | 18 | 8 | M16 | |
| 250 | BRSS2504087 | 356 | 405 | 290 | 19 | 22 | 8 | M20 | |
| 315 | BRSS3154087 | 406 | 455 | 345 | 23 | 22 | 12 | M20 | |
| 355 | BRSS3554087 | 470 | 525 | 376 | 30 | 62 | 12 | M24 | |
| 375*² | BRSS3754087 | 495 | 550 | 430 | 30 | 26 | 12 | M24 | |
| 400 | BRSS4004087 | 521 | 580 | 430 | 30 | 62 | 12 | M24 | |
| 450 | BRSS4504087 | 584 | 640 | 480 | 30 | 26 | 12 | M24 | |
| 500 | BRSS5004087 | 641 | 705 | 533 | 38 | 26 | 16 | M24 | |
| 630 | BRSS6304087 | 756 | 825 | 660 | 48 | 30 | 16 | M27 | |
| 710 | BRSS7104087 | 845 | 910 | 745 | 56 | 30 | 20 | M27 | |
| 800 | BRSS8004087 | 984 | 1060 | 835 | 56 | 36 | 20 | M33 | |
| 900 | BRSS9004087 | 1092 | 1175 | 950 | 66 | 36 | 24 | M33 | |
| *¹ 8″ PCD to suit 225mm pipe | |||||||||
| *² To suit 400mm pipe, special stub flange is required | |||||||||
